Techno Multiwall: Precision CNC center for crafting curved beams and advanced wall systems
NC working centre to process curved beams, X-LAM / CLT walls, SIPS walls and frame walls with dimensions up to 6000 mm in width, 480 mm in thickness and unlimited length.
Essetre S.r.l.
36016 Thiene (VI),
Italy
Techno Multiwall is an NC working centre to process curved beams, X-LAM / CLT walls, SIPS walls and frame walls with dimensions up to 6000 mm in width, 480 mm in thickness and unlimited length.

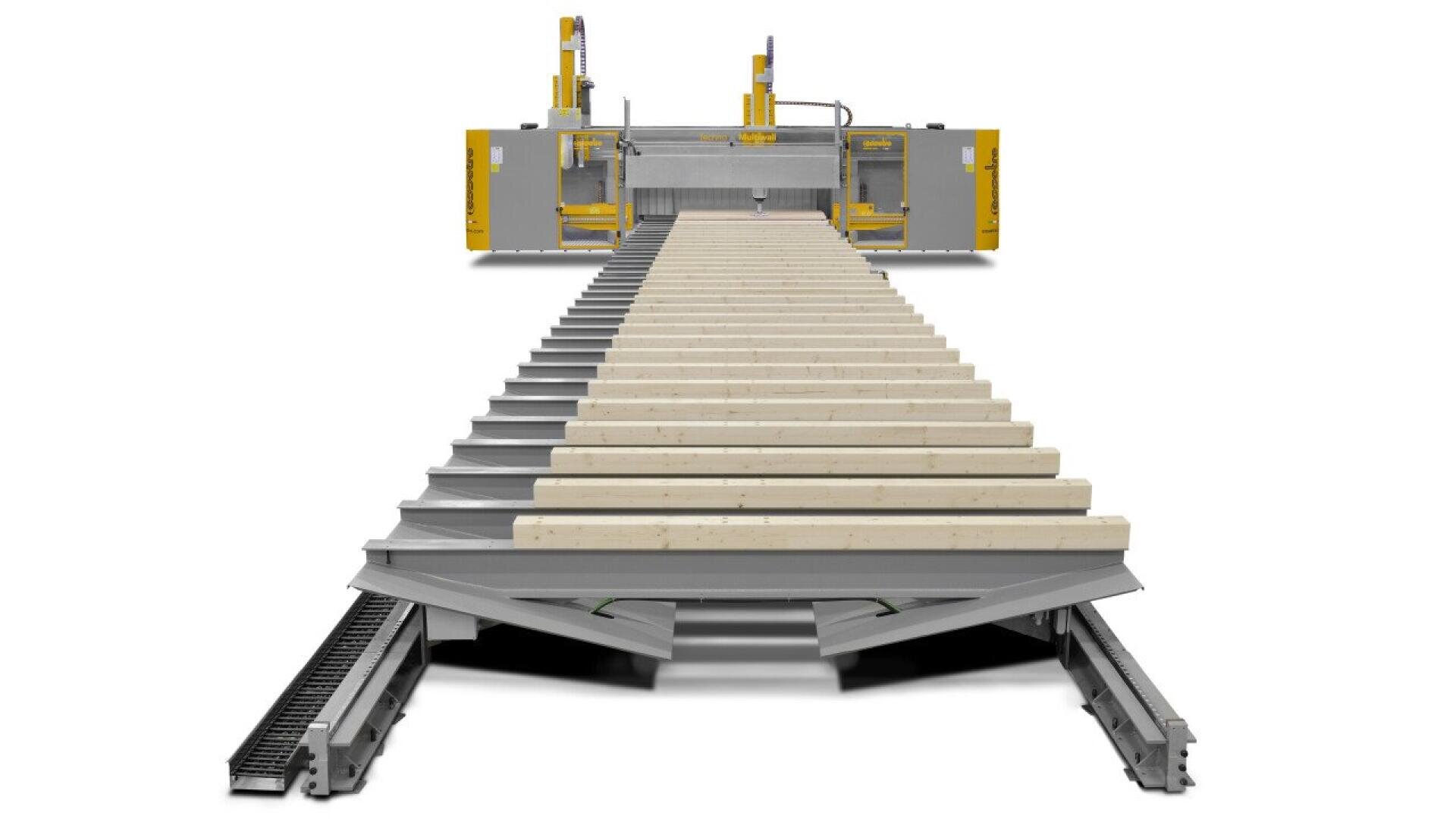

The machine is characterised by a mobile portal frame which moves along the entire length of the machine.

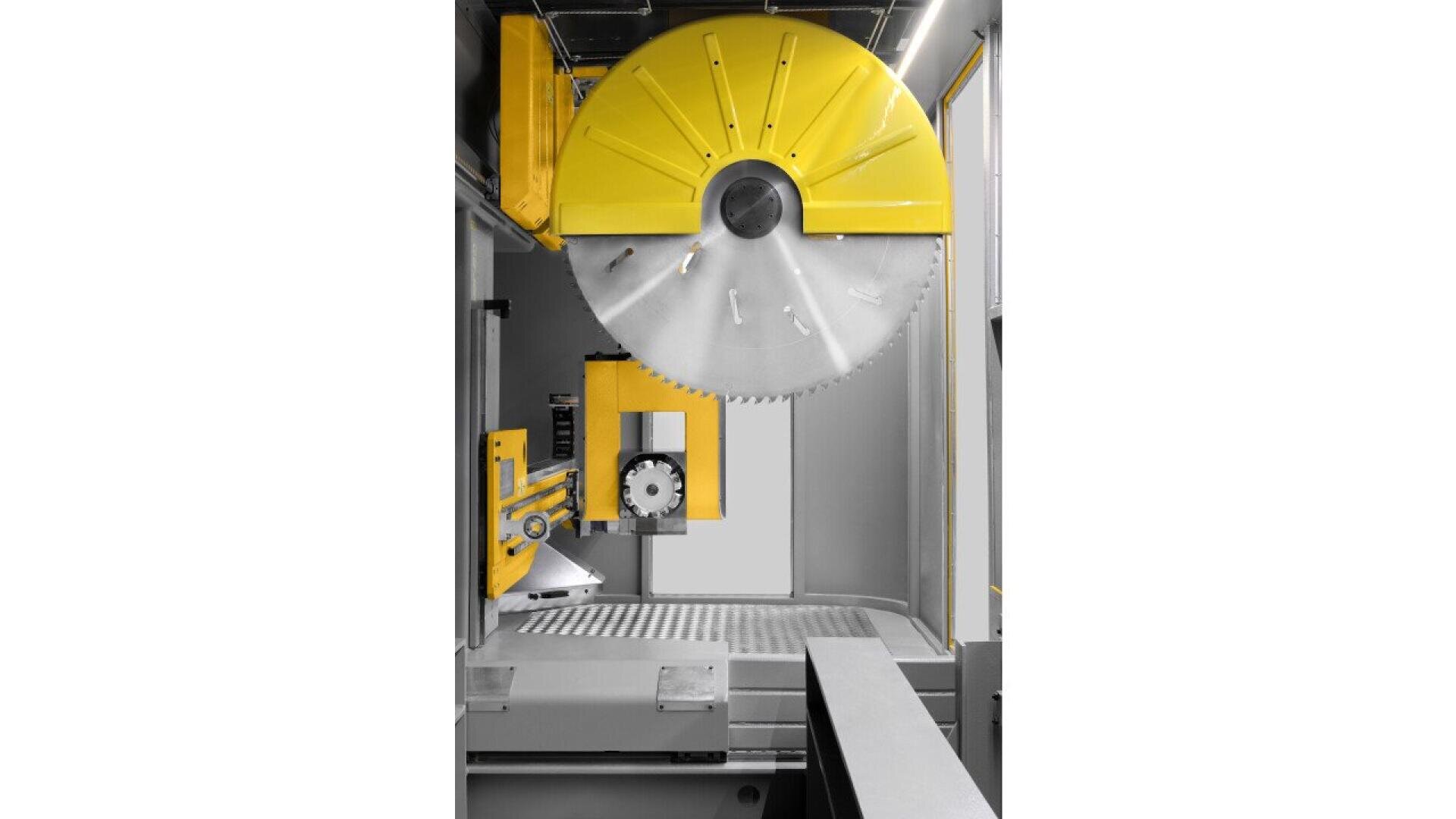

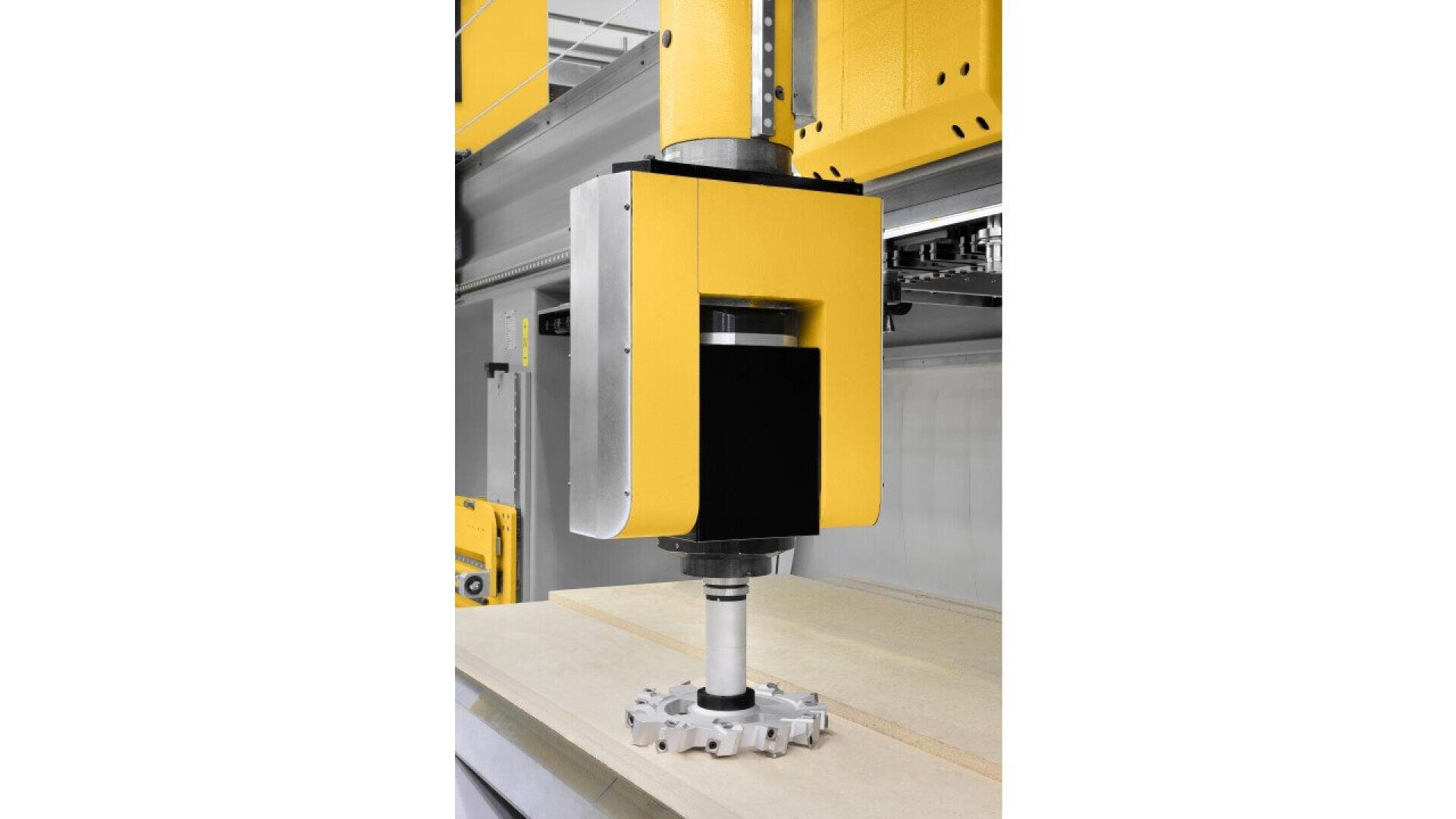

The processing is carried out with a 5-axis milling unit with HSK80F tool holder and a special 5-axis blade unit with 1200 mm diameter to cut walls up to 400 mm thick.
